What is software architecture?

What software architecture means

Software architecture is the overall structure of a software system: its main parts, what each part is responsible for, how they work together, and the important decisions behind that arrangement.

Those parts might be modules within one application, separate programs or services provided by another organisation. Architecture explains how they fit together and what each part needs from the others.

A feature describes something a person can do, such as finding a document or updating a task. Architecture is the organisation behind those features: where information belongs, where rules are checked and how work moves between components. A component is simply a part of the software with a particular job.

These choices matter in everyday use. They affect whether information stays consistent, who can access it, what happens when something fails, and how much work the next change will take.

A technology list tells you which tools were used. A diagram helps explain how the parts connect. Neither is the architecture on its own: architecture is how the software is put together, not just how it is described.

Architecture is part of software design. Renaming an internal function is usually a local decision. Deciding how several applications share customer information affects much more. A decision needs architectural thinking when it shapes the wider system, how well it works or how easily it can change.

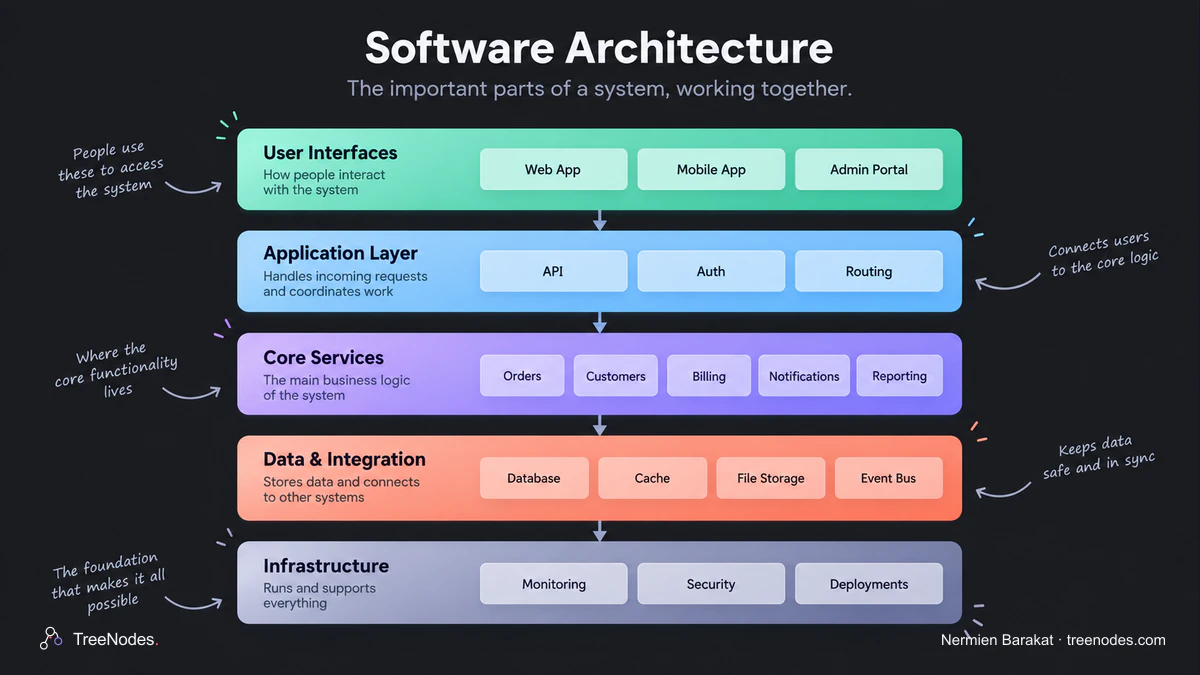

What software architecture includes

One way to understand a business application is to group the work it does. These two views introduce its main parts, then show how infrastructure, security and monitoring support them. They are not a sequence of steps, and each group does not need to run as a separate application.

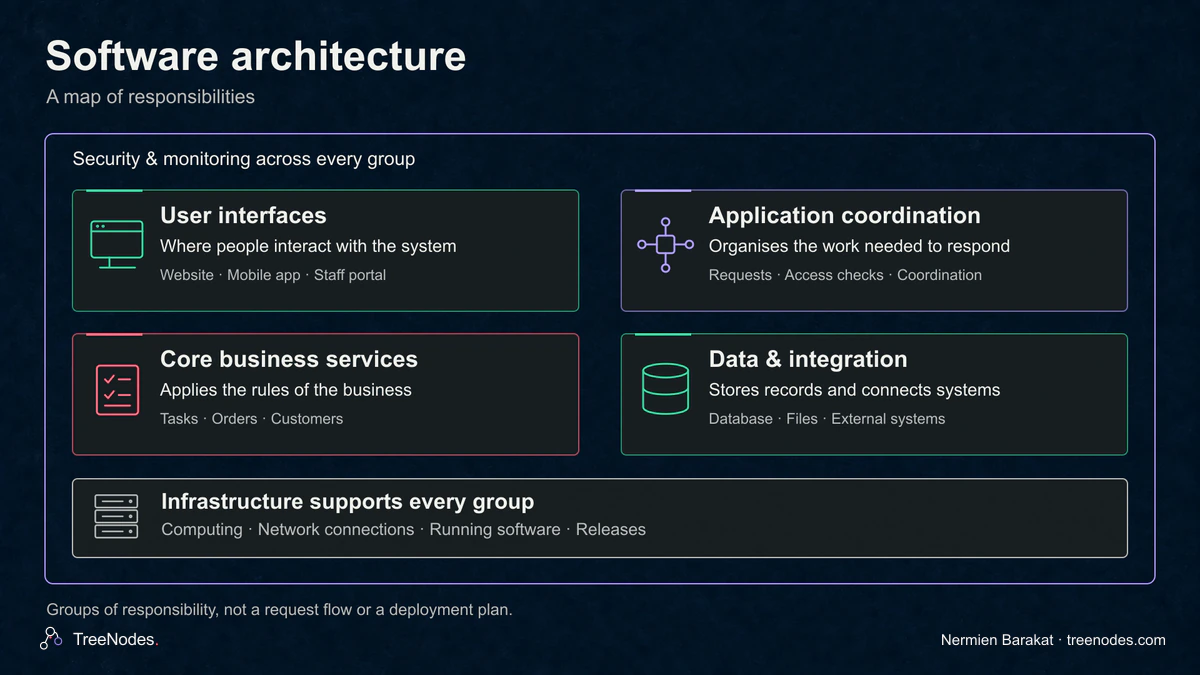

Two views of the same system

View 1 of 2

← →

1 Parts of a system2 Responsibilities and support

Swipe or use the arrows to explore both views. Enlarge either image for a closer look.

• User interfaces: the website, mobile app or staff portal through which someone asks the system to do something.
• Application coordination: receiving a request, checking access and organising the work needed to respond.
• Core business services: the rules and actions specific to the business, such as assigning work or deciding whether an order can proceed.
• Data and integration: storing information and exchanging it with other software.
• Infrastructure: the computers, networks and tools used to run, release and support the application.

The boxes are only a starting point. Architecture also explains their connections. Which part can update a record? What do the other parts need to know? Must they wait for an answer, or can their work continue? The answers help the team decide which parts need to work closely together and which can change on their own.

A boundary makes clear what a part is responsible for and what it is allowed to do. For example, a reporting component might read task records but have no permission to change them.

Several groups can live within one application. Security and monitoring matter throughout the system, from its interfaces and business rules to its data and infrastructure.

A simple example: a shared task list

Imagine a small team using a fictional task application on both a website and a mobile app. A person marks a task complete on their phone. Their colleague expects the website to show the same result.

The feature sounds small, but the design needs to answer three questions:

1. Who can make the change? The task component applies the permission rules, so the website and mobile app do not make different decisions about the same person.
2. Where does the result belong? Both interfaces use a shared task record instead of maintaining unrelated versions of whether the work is complete.
3. How do other parts find out? The updated status becomes available to the other interface and to any notification or reporting features that need it.

One possible arrangement is two interfaces connected to the same application and task store. The interfaces present the work; the application controls changes; the store keeps the result.

We can already describe the architecture without choosing a programming language or designing the database in detail. We know the parts, their jobs and how they work together.

Why the decisions matter

Features need to work, but that is only the start. A system also needs to handle failures, protect information and stay manageable as it grows.

Reliability: a delayed email alert does not necessarily have to stop someone updating a task. Keeping those responsibilities separate can allow the main work to continue. The team must then account for messages that arrive later.

Security: checking permissions on the website is not enough if the mobile app can bypass them. Access rules must protect the information whichever route someone uses.

Ease of change: a rule with one clear home is easier to update than the same rule copied into several applications. Clear boundaries can help the team change one part without having to change everything around it.

Cost: separate services can let teams release their work separately, but someone still has to connect, deploy and monitor them. For a small team, that extra work may outweigh the benefit.

Architecture involves trade-offs: understanding what a choice improves and what it costs. Faster access might mean keeping a copy of data that can become stale. More flexibility might require more code to maintain. The right balance depends on the system’s purpose and constraints.

Start with the simplest design that meets the system’s needs

One application with clear internal modules can be a sound design. Splitting it into more applications is useful only when that solves a real problem, such as different operating needs or teams unable to release their work separately.

The people who understand the business and those who build and run the software should make these choices together. An architect or technical lead helps the team make decisions that affect several parts of the system. Not every small decision needs a meeting.

The design should change as the system's needs change. Keep a short record of important choices: what you decided, why, and when you might need to reconsider. That helps the next person understand the reasoning instead of having to guess.

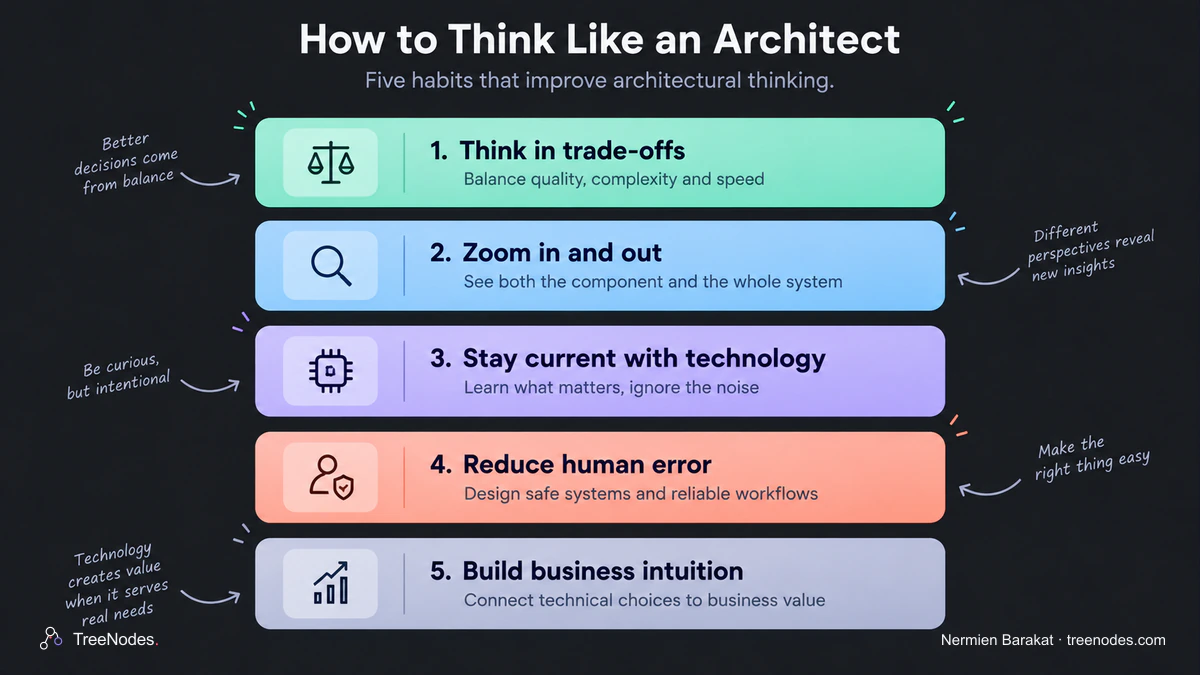

How to think architecturally

Thinking architecturally means asking how a change affects the rest of the system. These five habits help, whether or not your job title includes “architect”.

Think in trade-offs. Compare the benefit of a decision with the extra work, limits or risks it introduces.

Zoom in and out. Follow one change through a component, then look at the people and other components that depend on it.

Learn with purpose. Stay curious about technology. Before adopting it, identify the problem it solves and whether the team can support it.

Reduce the impact of mistakes. Use clear permissions and safe defaults to prevent avoidable errors. Provide undo, version history or ways to restore data where appropriate, so people can recover when mistakes happen.

Connect decisions to the business. Understand what people are trying to accomplish and which outcomes matter most. Let that guide the technical choices.

A fictional team uses a website and a mobile app to update shared tasks.
Each task has a title, an owner and a status. Only authorised people may
change it, and both interfaces should show the same recorded outcome.

In three sentences, explain:
1. Where should the permission and update rules live?
2. Which record should both interfaces use?
3. How should the interfaces learn that a task has changed?
